ROYAL AUDITORIUM SEATING

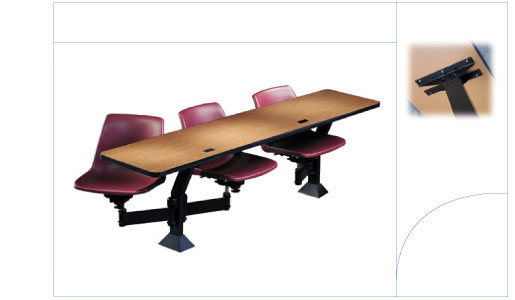

The Lecture Lab Series is designed to meet the needs of today's classroom with the added advantage of a custom wire management and grommet system for laptops
Fiberglass Seat - 6001/7001
*Seat is a one-piece reinforced polyester resin shell molded into a form fitting shape
*Surface of sitting side is smooth and treated with a surfacing veil
*Seat width is 18"
*Seat is connected to seat bracket by four plated bolts molded into the fiberglass
*Shell is available upholstered or with seat and back pads
Polypropylene Seat - 6002/7002
*Large 18" wide adult size polypropylene shell, sculptured to fit the body contours
*Shell is constructed of injection-molded high density, high impact polypropylene plastic with anti-static additive and is slightly textured
*Shell is attached by 4 high-tensile steel self-threading tamper resistant screws into built up plastic attaching points
*Shell is available with upholstered seat and back pads
Folding Writing Tablet
*1/2" thick hardwood plywood covered with plastic laminate with backing underneath
*All edges are rounded, sanded and smoothened
*Tablet is 11 1/2" x 10 1/2"
*Spring loaded "break-away" feature
*Available for right hand or left hand positions
Pedestal Specifications:
*Made of 1 3/4" 14 gauge square carbon steel tubing
*Mig-welded to form a rigid assembly
*An escuthion plate is provided for better appearance
*All metal parts are finished with a five stage powder coat metal paint
7000 Series Table Top Specifications:
*Wilsonart brand high pressure laminate
*Particleboard core
*18" wide, 1 1/4" thick
*1 1/4" wide vinyl bullnose edging
Top Mount Bracket Specifications:
*Adjustable top support brackets
*11 gauge steel finished with powder coat paint
Swing-Out Arm Specifications:
*Made of 1" x 2" x 14 gauge carbon steel tubing
*Adjustable tilting mechanism is tension loaded
*All metal parts are finished by a five stage powder coat paint
Top Colors (6000 & 7000):
*Teal, Oak, Walnut, Custom colors available
Seat Colors:
*Navy, Burgundy, Hunter Green, Sand, Gray, Blue
Fabric:
*Marquesa Lana - Shire & Sherpa
Metal Finish:
*Black, Sand, Gray
